- Place of Origin: China
- Brand Name: dongyue
- Model Number: DF201/203

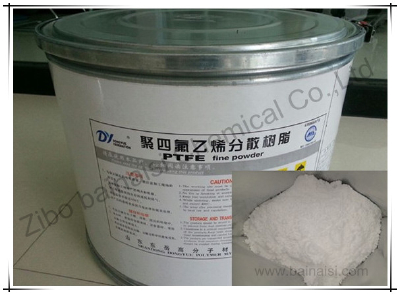

PTFE Fine Powder
Application:
This PTFE material is for making PTFE thread seal tape.
PTFE DF-201 suitable for low density tape; PTFE DF-203 suitable for high density tape
Material Properties:
Excellent chemical resistance
Greatest resistance to fatigue
Flame resistant
No stick &Low coefficient of friction
Not hygroscopic (water absorption < 0,01%)
Excellent dielectric insulation properties

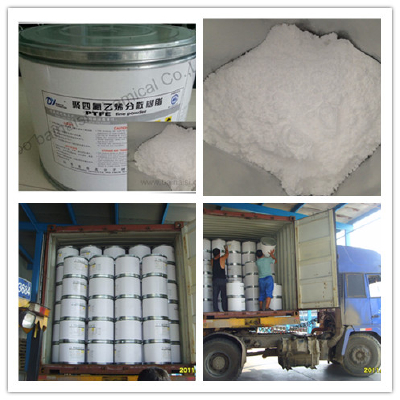

Storage&Package:
1.Stored in clean and dry places, and temperature range is 5~30℃.
2.Net Weight 20kg/drum., 380 drums/20’GP
- Place of Origin: China
- Brand Name: dongyue
- Model Number: DF201/203
Item | PTFE Fine Powder DF-201/203 | |
Excellent Grade | ||
Smoothness & Cleaness | Clean & white surface | |
Tensile Strength, (Mpa)≥ | DF-201 | 24.0 |
DF-203 | 28.0 | |
Elongation at Rupture, (%)≥ | DF-201 | 350 |
DF-203 | 330 | |
Volume Density, (g/L) | 475±100 | |
Extrude pressure, ( RR100) Mpa | 9.7±4.2 | |
Average Grain, ( μ m) | 525±150 | |
Moisture Content, (%)≤ | 0.04 | |
Melting Point, (℃) | 327±5 | |
Stand Relative Density | 2.200 | |
Thermal Inst, Index, ≤ | 50/30 | |
Electric Strength, (KV/MM)≤ | 2.1 | |
Dielectric Dissipation factor | 3*10¯4 | |
For process | Paste extrusion | |
